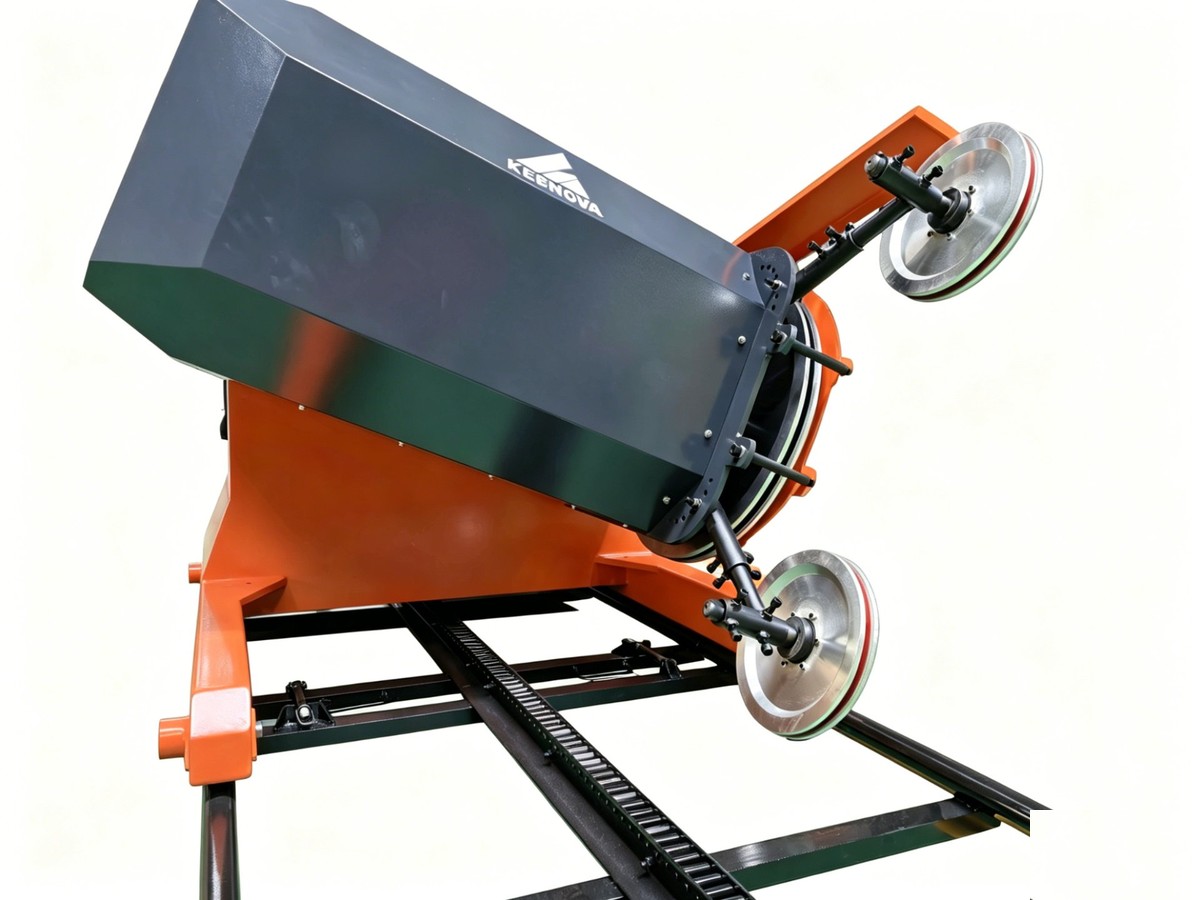

The continuous-production quarry workhorse
The 55kW class is the machine most quarries settle on for continuous block cutting. It has enough power reserve to hold cutting speed through long sections without stalling, while staying practical on power supply and running cost.
The 55kW class is the workhorse for continuous quarry block cutting — enough reserve to hold cutting speed through long sections without stalling in the cut.
The failure mode in quarry wire sawing is not a lack of peak power — it is the wire slowing down in the cut. Once the wire stops cutting and starts rubbing, the beads polish and wire life collapses. Reserve power is what prevents that.
Step up to the 75kW PM machine only where the block size and stone hardness justify it. On sites with limited power supply the 55kW machine is often the better real-world choice.
Values we can state from real applications, with the basis for each one.
| FamilyWire Saw Machines | 75kW PM Motor Wire Saw | 55kW Wire SawThis page | 37kW Wire Saw | 22kW Wire Saw | 18.5kW Wire Saw | Crawler Wire Saw Machine |
|---|---|---|---|---|---|---|
| Material | Granite, hard natural stone | Granite and general quarry stone | Granite, marble and general quarry stone | Granite, marble and general quarry stone | Granite, marble and general quarry stone | Not stated |
| Application | Primary quarry block cutting | Continuous quarry block cutting | Block trimming or small bench cutting | Block trimming, sawing and squaring block heads | Block trimming, sawing and squaring block heads | Quarry block cutting and squaring |
| Power | 75kW, permanent-magnet motor | 55kW | 37kW | 22kW | 18.5kW | Not stated |
| Best for |
|
|
|
|
|
|
One row per attribute. A cell reading “Not stated” has no verified figure behind it — we confirm it against your job rather than assume a value. Machine dimensions, weight, wire speed and rail configuration are available on request.
Every specification above is confirmed against your material, machine and site conditions before an order is placed.
We specify against the job rather than the catalog. These are the facts that decide the answer for anything in Quarry Equipment.
This product is specified as part of a set. These are the wire families and product groups it is normally combined with — final selection depends on the material, the machine and the site conditions.
Actual applications with the equipment, tooling and working conditions recorded.
Cutting speed 8–10 m²/hour. Wire lifetime 20–24 m² per meter. Stable cutting with no wire breaks recorded, and measurably reduced downtime.
All 18 wire saw machines still in service, including the original unit. A partnership that has run from the early Keentool days through to the current
Higher output per shift, with wire life stable enough to plan production around rather than react to.
How this equipment and tooling performs in real quarry and construction conditions.
Send the material, the machine and the working conditions. We will come back with a specification that suits the job — and say plainly where a limit exists.
